65 inch 0mm splicing LCD splicing screen wall

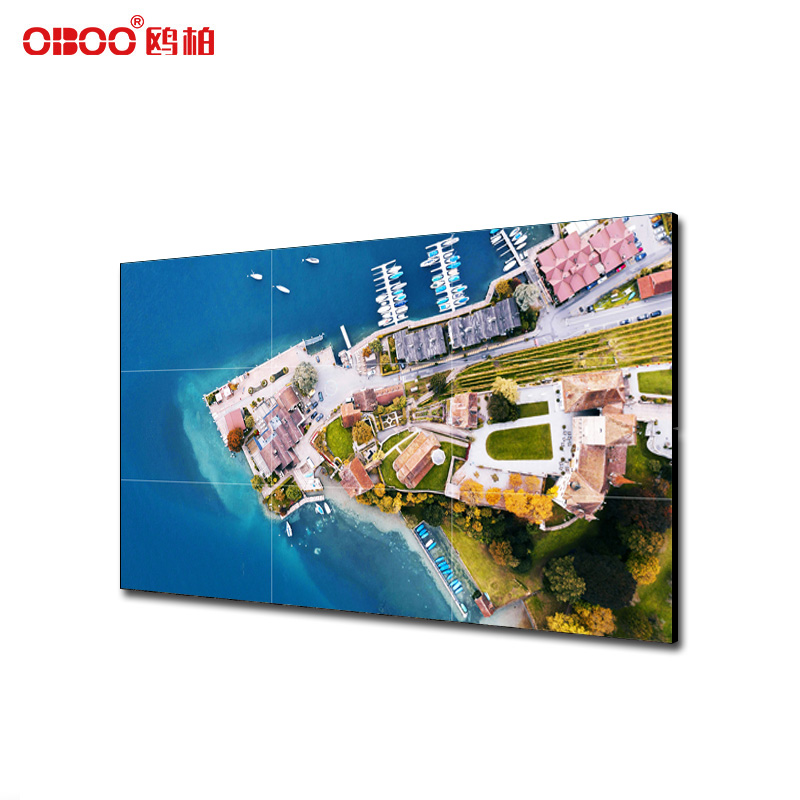

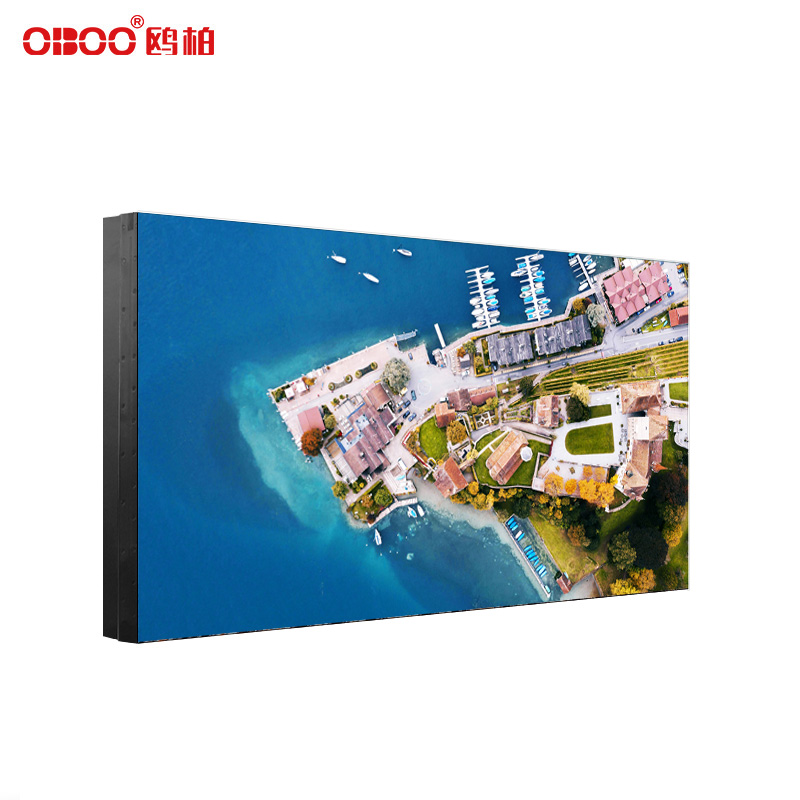

OBOO 65 inch 0mm splicing LCD splicing screen

OBOO LCD splicing display unit, industrial grade ultra narrow frame machine, adopts direct type LED backlight source, with more uniform display brightness and wider color gamut. Rich interfaces, stable operation, and can work continuously for 24 hours.
Send Inquiry
Description
Argument
Products Description

65 inch 0mm ultra narrow seam design, with more detailed display effect;

Ultra high contrast, brighter color effects, and richer layering in the picture;

1920 * 1080 ultra-high physical resolution, clearer picture quality, and more delicate effects;

Adopting TFT technology, it has good stability, large viewing angle, fast response speed, and high color reproduction;

Using Anti glass material to reduce screen reflection, images are more realistic, and enjoy better visual effects;

Adopting a direct LED backlight mode, the unit display is more uniform and there is no boundary shadow phenomenon;

Adopting automatic color and image enhancement engine technology to improve image details, resulting in a more beautiful visual representation;

The whole machine is made of all metal structure, which is resistant to radiation, magnetic field, and strong electrical interference;

Industrial grade design, high strength, more stable, supports 7 * 24 work;

Multiple splicing installation methods, suitable for airports, stations, banks, exhibition halls, conference halls, monitoring rooms, government agencies and other places.


Tags:

Technical parameter

Screen

 parameters

Screen size

65 inches

Splicing gap

0mm

LED backlight

D-LED

Display size

1428*803(H*V)mm

Screen resolution

1920*1080

Display scale

16:9

Contrast ratio

1200:1

Response time

8ms (Typ.)

Display color

1.07B (8-bit+Hi-FRC)

Refresh rate

60Hz

Display luminance500cd/m²
Viewing Angle

Horizontal/vertical: 178°/178°

Suface TreatmentAnti-glare,Haze25%

interface

attributes

Input interface

DVI,VGA,HDMI, AV,USB, RS232,DP,CVBS...

Output interface

RS232 Serial port,USB

Other interfaces

Please contact us to configure the interface type you need

Function

CPU

Full hardware architecture, no CPU or operating system

Language

Chinese, English

software

Support roaming and picture in picture functions, support full screen scaling of all windows at any ratio and size, without window ratio or size restrictions

Other functions

For example, implementing special display functions such as signal segmentation display, signal decoding, multi-channel signal input, windowing, stacking, cross screen, roaming zoom, etc.

Please contact us and we will provide answers based on your actual needs

Touch box

(optional)

Touch Box

External infrared touch frame, touch strip needs to be spliced on site, does not include tempered glass, tempered glass needs to be prepared on site

Touch sensing technology

Infrared sensor recognition touch technology

Touch mode

Fingers, stylus or other non-transparent objects not less than 5mm in diameter (multi-point 8mm)

Positioning accuracy

More than 90% of the touch area is ±2mm

Touch Click CountTheoretically infinite

Touch box size

Calculate based on the overall size of the spliced screen wall

Machine

 parameters


Machine size

1432.58*807.62mm

Shell material

Strong metal structure

Gross weight

28.9kg

Input voltage

100 V ~ 240 V/AC,50/60 Hz

Operation temperature

0~60℃RH Non-Condensing

Working humidity

20%~85% RH Non-Condensing

Storage temperature

-10℃~60℃Non-Condensing

Storage Humidity

10%~90% RH Non-Condensing

Installation methodCabinet type, wall mounted, embedded

Accessory

Standard accessories

AC power cord, network cable, hook, remote control, remote receiver head, certificate of conformity, warranty card

Bracket

Wall mounted brackets, cabinets, hydraulic brackets, curved cabinets, floor standing wall mounted brackets, etc. Equip according to actual scene requirements
