Products Description

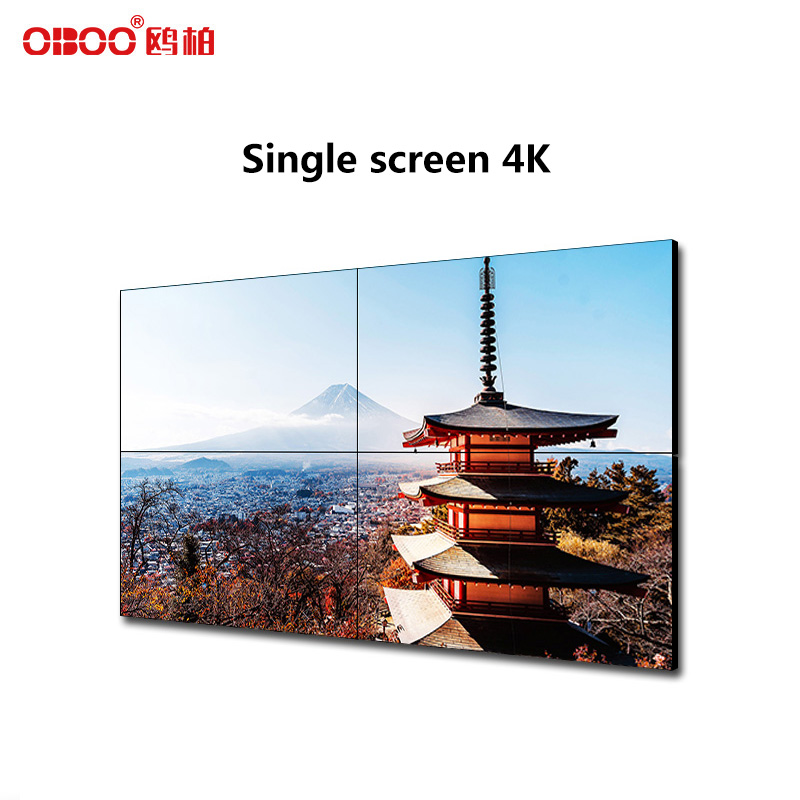

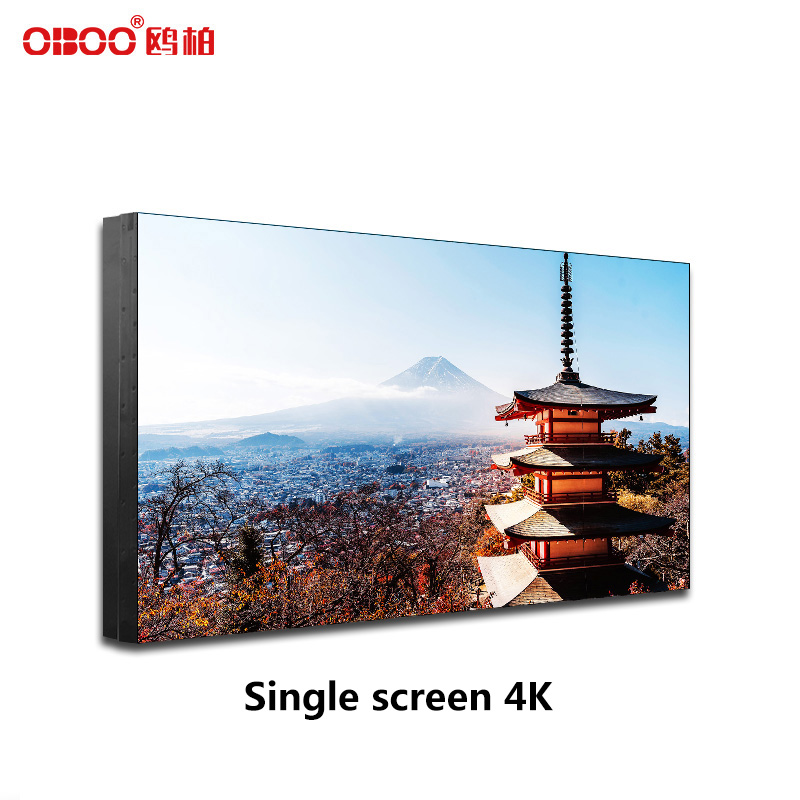

65 inch4K 3.5mm ultra narrow seam design, with more detailed display effect;
Ultra high contrast, brighter color effects, and richer layering in the picture;
3840*2160 ultra-high physical resolution, clearer picture quality, and more delicate effects;
Adopting TFT technology, it has good stability, large viewing angle, fast response speed, and high color reproduction;
Using Anti glass material to reduce screen reflection, images are more realistic, and enjoy better visual effects;
Adopting a direct LED backlight mode, the unit display is more uniform and there is no boundary shadow phenomenon;
Adopting automatic color and image enhancement engine technology to improve image details, resulting in a more beautiful visual representation;
The whole machine is made of all metal structure, which is resistant to radiation, magnetic field, and strong electrical interference;
Industrial grade design, high strength, more stable, supports 7 * 24 work;
Multiple splicing installation methods, suitable for airports, stations, banks, exhibition halls, conference halls, monitoring rooms, government agencies and other places.
Tags:
Technical parameter
Screen parameters | Screen size | 65 inches |
| Splicing gap | 3.5mm | |
LED backlight | D-LED | |
Display size | 1428*803(H*V)mm | |
Screen resolution | 3840*2160 | |
Display scale | 16:9 | |
| Contrast ratio | 1200:1 | |
| Response time | 8ms (Typ.) | |
| Display color | 1.07B （8-bit+Hi-FRC) | |
| Refresh rate | 60Hz | |
| Display luminance | 500cd/m²、700cd/m² | |
| Viewing Angle | Horizontal/vertical: 178°/178° | |
| Surface Treatment | Anti-glare,Haze25% | |
interface attributes | Input interface | DVI,VGA,HDMI, AV,USB, RS232,DP,CVBS... |
Output interface | RS232 Serial port,USB | |
Other interfaces | Please contact us to configure the interface type you need | |
Function | CPU | Full hardware architecture, no CPU or operating system |
Language | Chinese, English | |
software | Support roaming and picture in picture functions, support full screen scaling of all windows at any ratio and size, without window ratio or size restrictions | |
Other functions | For example, implementing special display functions such as signal segmentation display, signal decoding, multi-channel signal input, windowing, stacking, cross screen, roaming zoom, etc. Please contact us and we will provide answers based on your actual needs | |
Touch box (optional) | Touch Box | External infrared touch frame, touch strip needs to be spliced on site, does not include tempered glass, tempered glass needs to be prepared on site |
| Touch sensing technology | Infrared sensor recognition touch technology | |
Touch mode | Fingers, stylus or other non-transparent objects not less than 5mm in diameter (multi-point 8mm) | |
| Positioning accuracy | More than 90% of the touch area is ±2mm | |
| Touch Click Count | Theoretically infinite | |
Touch box size | Calculate based on the overall size of the spliced screen wall | |
Machine parameters | Machine size | 1432.58*807.62mm |
Shell material | Strong metal structure | |
Gross weight | 28.9kg | |
Input voltage | 100 V ~ 240 V/AC，50/60 Hz | |
Operation temperature | 0~60℃RH Non-Condensing | |
Working humidity | 20%～85% RH Non-Condensing | |
Storage temperature | -10℃～60℃Non-Condensing | |
| Storage Humidity | 10%～90% RH Non-Condensing | |
| Installation method | Cabinet type, wall mounted, embedded | |
Accessory | Standard accessories | AC power cord, network cable, hook, remote control, remote receiver head, certificate of conformity, warranty card |
Bracket | Wall mounted brackets, cabinets, hydraulic brackets, curved cabinets, floor standing wall mounted brackets, etc. Equip according to actual scene requirements |
