Products Description

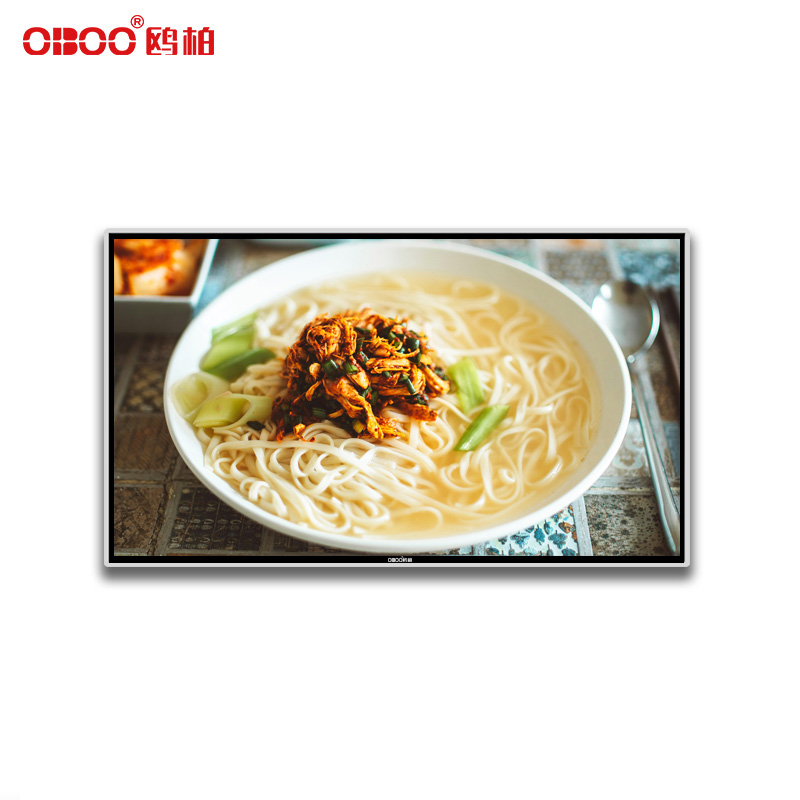

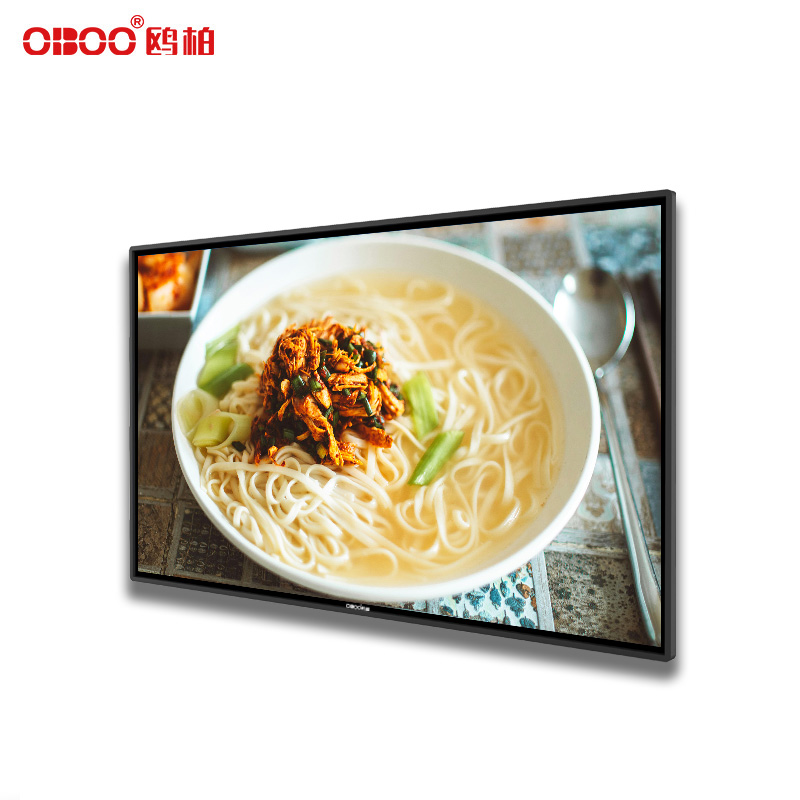

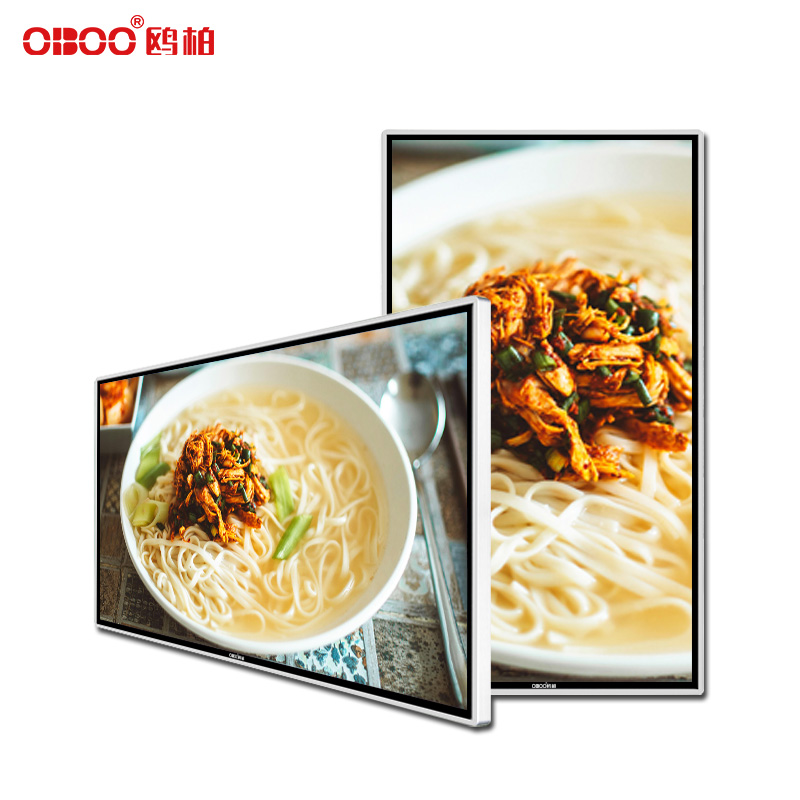

OBOO 43 inch wall mounted LCD infrared touch screen all-in-one machine,With ultra-thin body, high-definition display, built-in audio, energy saving and low consumption, 7*24 hours operation, fashion appearance, etc.Support video, pictures and other multimedia formats,Support touch man-machine interaction query browsing, you can better show the content you want to play, attract more customer attention
You can choose to use the multimedia information release system to achieve remote control, playback screen production, content release and machine management.
It can also be based on the actual use of a variety of system configuration options,Multiple control interface options,Choose different colors to match,It also supports custom installation of camera, microphone, card reader, two-dimensional code scanning head, 4G Internet of Things card and other peripheral configuration functions.
Tags:
Technical parameter
Screen parameters | Screen size | 43 inches |
Display size | 943*531（H*V）mm | |
Screen resolution | 1920*1080,3840*2160 | |
Contrast ratio | 1200:1 | |
| Display color | 1.07B （8-bit+Hi-FRC) | |
| Refresh rate | 60Hz | |
| Display luminance | 300cd/m²,500cd/m² | |
| Viewing Angle | Horizontal/vertical: 178°/178° | |
Display configuration | Video input | HDMI:480i,480p,576i,576p,720p,1080i,1080p,4Kx2K@60Hz |
DP:480i,480p,576i,576p,720p,1080i, 1080p,4Kx2K@60H | ||
DVI:480i,480p,576i,576p,720p,1080i,1080p,4Kx2K@30H | ||
VGA:480i,480p,576i,576p,720p,1080i,1080p | ||
USB：480i,480p,576i,576p,720p,1080i,1080p | ||
Audio input | PC Audio：L/R RCA input，0.2 ~ 2.0Vrms | |
The above parameters are for reference only. The actual requirements prevail | ||
Android configuration | CPU | Quad-core processor |
| RAM | 1GB\2GB\4GB\8G | |
ROM | 16GB\32GB\64GB | |
Web support | RJ45 Network cable,WiFi,Bluetooth 4.0 | |
Port | USB,RJ45,HDMI out,Headphone socket,TF card slot | |
Serial port | RS232,RS485,TTL | |
| System version | Android 7.1.2,Android 9.0,Android 11, | |
software | Multimedia information release system software and management background | |
| The above parameters are for reference only. The actual requirements prevail | ||
PC configuration | CPU | I3\I5\I7 （3rd, 4th, 6th, 7th, 8th generation....） |
RAM | 4GB\8GB\16GB\32G | |
SSD | 64GB\128GB\256GB\512GB | |
Web suppor | RJ45 Network cable，WiFi，Bluetoot | |
Port | USB，RJ45，HDMI out，VGA out，Audio out | |
| Serial port | RS232，RS485，TTL | |
System version | Windows 7，Windows 8，Windows 10，Windows 11 | |
| The above parameters are for reference only. The actual requirements prevail | ||
Touch parameter | Touch embedding mode | Industrial built-in integrated, non-external (anti-interference, anti-scratch, anti-reflective) |
| Touch sensing technology | Infrared sensor recognition touch technology (10-point touch) | |
Touch mode | Fingers, stylus or other non-transparent objects not less than 5mm in diameter (multi-point 8mm) | |
| Positioning accuracy | More than 90% of the touch area is ±2mm | |
| Touch Click Count | Theoretically infinite | |
Fuselage technology | Appearance design | Novel and beautiful, reasonable layout, wiring standard. Four-class narrow edge structure, ergonomic design; |
Fuselage material | Aluminum profile metal spray paint,cold-rolled steel plate,durable,compression resistance is not easy to deformation,cabinet and fixed backplane components tightly | |
Appearance technology | Aluminum profile wire drawing oxidation treatment | |
| LCD surface protection | Ultra transparent tempered glass protection | |
Surface treatment | Aluminum paint sleeve: high-gloss paint/industrial paint, no need to worry about falling off or rust; Corrosion resistant, easy to clean overall. | |
Power source | Built-in safe and reliable power external lead and special socket (with anti-static grounding design) | |
Audio speaker | Built-in full frequency audio speaker *2 | |
ON-OF | No need to open the cabinet,directly external reset switch,convenient and quick | |
| Power input | 100～240V 50/60Hz | |
| Machine size | Reference size：981*569*63mm | |
mountings | Wall mounted bracket, screw, power cord, certificate, warranty card, WiFi antenna, remote control | |
