75 inch vertical LCD advertising machine

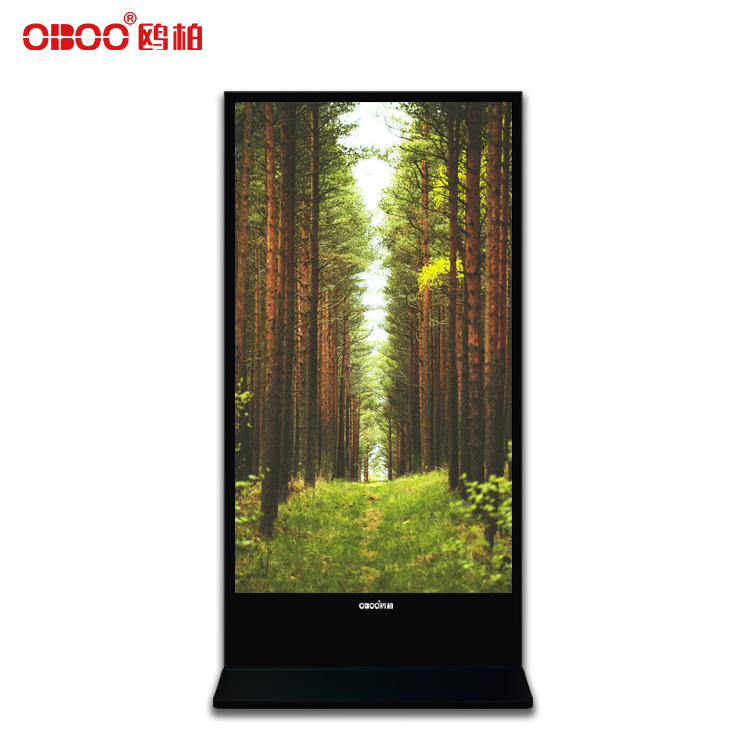

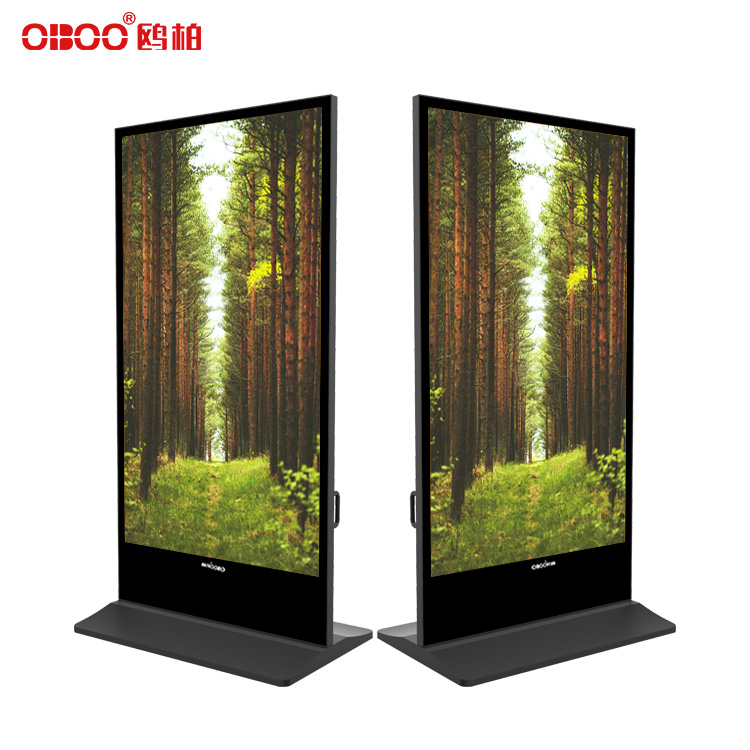

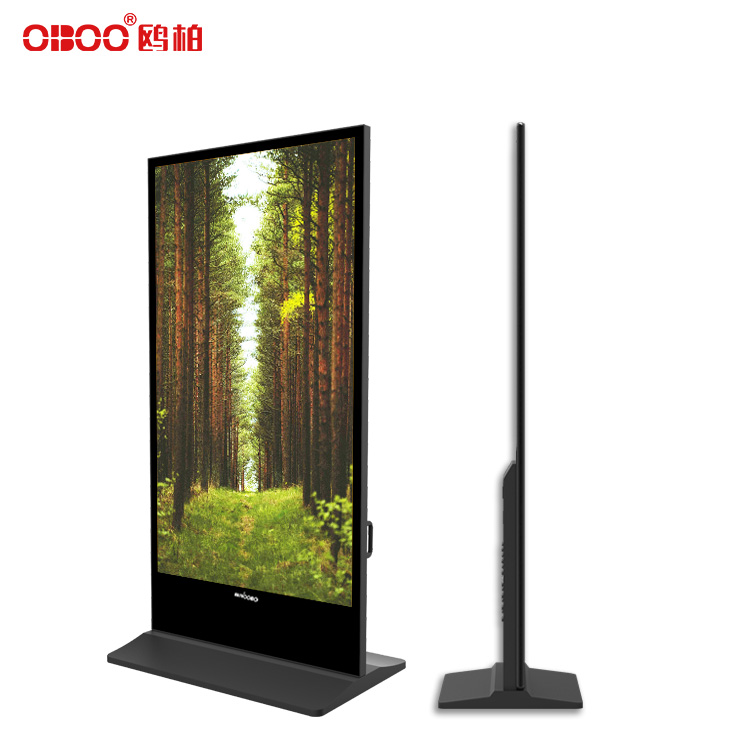

OBOO 75 inches vertical LCD advertising machine

Vertical LCD advertising machines are very suitable for advertising and promotion in shopping malls, hotels, exhibition halls, shopping centers, restaurants, banks, enterprises, governments, cinemas and other places.
Send Inquiry
Description
Argument
Products Description

OBOO 75 inches  vertical LCD advertising machine,With ultra-thin body, high-definition display, built-in audio, energy saving and low consumption, 7*24 hours operation, fashion appearance, etc.Support video, pictures and other multimedia formats, you can better show the content you want to play, attract more customer attention

You can choose to use the multimedia information release system to achieve remote control, playback screen production, content release and machine management.

It can also be based on the actual use of a variety of system configuration options,Multiple control interface options,Choose different colors to match,It also supports custom installation of camera, microphone, card reader, two-dimensional code scanning head, 4G Internet of Things card and other peripheral configuration functions.

Tags:

Technical parameter

Screen

 parameters

Screen size

75 inches

Display size

1650*928(H*V)mm

Screen resolution

1920*1080,3840*2160

Contrast ratio

1200:1

Display color

1.07B (8-bit+Hi-FRC)

Refresh rate

60Hz

Display luminance400cd/m²
Viewing Angle

Horizontal/vertical: 178°/178°

Display

configuration

Video input

HDMI:480i,480p,576i,576p,720p,1080i,1080p,4Kx2K@60Hz

DP:480i,480p,576i,576p,720p,1080i, 1080p,4Kx2K@60H

DVI:480i,480p,576i,576p,720p,1080i,1080p,4Kx2K@30H

VGA:480i,480p,576i,576p,720p,1080i,1080p

USB:480i,480p,576i,576p,720p,1080i,1080p

Audio input

PC Audio:L/R RCA input,0.2 ~ 2.0Vrms

The above parameters are for reference only. The actual requirements prevail

Android

configuration

CPU

Quad-core processor

RAM

1GB\2GB\4GB\8G

ROM

16GB\32GB\64GB

Web support

RJ45 Network cable,WiFi,Bluetooth 4.0

Port

USB,RJ45,HDMI out,Headphone socket,TF card slot

Serial port

RS232,RS485,TTL

System version

Android 7.1.2,Android 9.0,Android 11,

software

Multimedia information release system software and management background

The above parameters are for reference only. The actual requirements prevail

PC

configuration

CPU

I3\I5\I7 (3rd, 4th, 6th, 7th, 8th generation....)

RAM

4GB\8GB\16GB\32G

SSD

64GB\128GB\256GB\512GB

Web support

RJ45 Network cable,WiFiBluetoot

Port

USBRJ45HDMI out,VGA out,Audio out

Serial port

RS232RS485TTL

System version

Windows 7,Windows 8,Windows 10,Windows 11
The above parameters are for reference only. The actual requirements prevail

Fuselage

technology

Appearance design

Novel and beautiful, reasonable layout, wiring standard. Four-class narrow edge structure, ergonomic design;

Fuselage material

Aluminum profile metal spray paint,cold-rolled steel plate,durable,compression resistance is not easy to deformation,cabinet and fixed backplane components tightly

Appearance technology

Aluminum profile wire drawing oxidation treatment

LCD surface protectionUltra transparent tempered glass protection

Surface treatment

Aluminum paint sleeve: high-gloss paint/industrial paint, no need to worry about falling off or rust; Corrosion resistant, easy to clean overall.

Power source

Built-in safe and reliable power external lead and special socket (with anti-static grounding design)

Audio speaker

Built-in full frequency audio speaker *2

ON-OF

No need to open the cabinet,directly external reset switch,convenient and quick

Power input

100~240V 50/60Hz

Machine size

Reference size:2000*1005*103mm

mountings

Machine base, screw, power cord, certificate, warranty card, WiFi antenna, remote control
