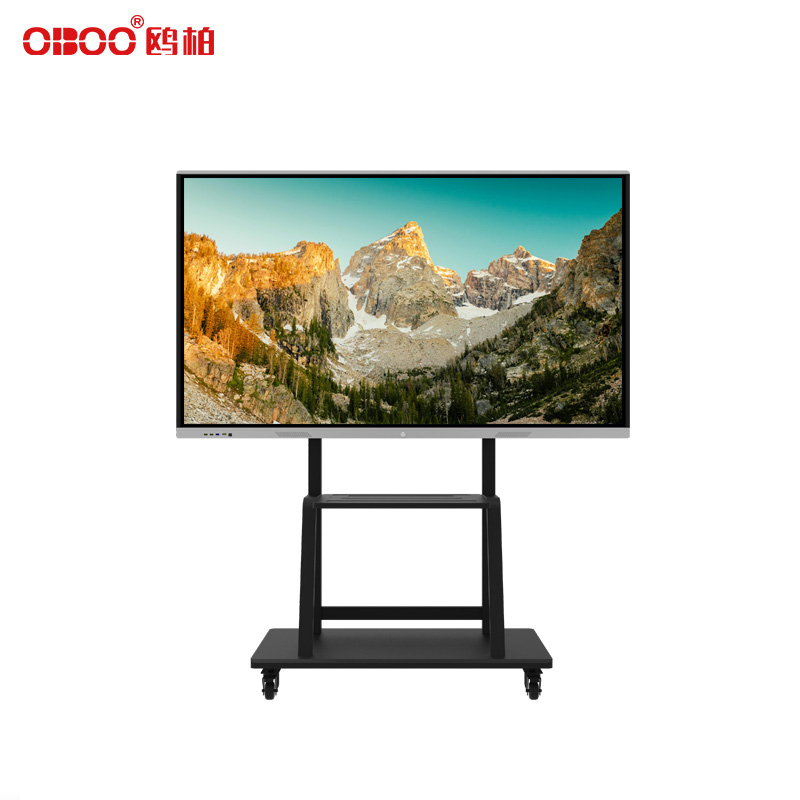

65 inch conference tablet all-in-one machine with mobile stand

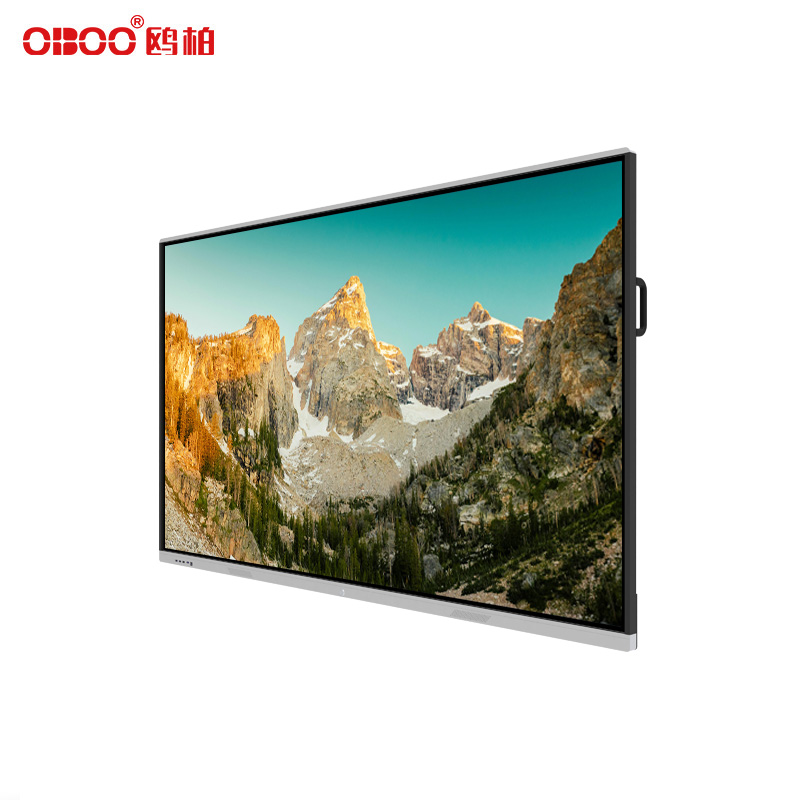

65 inch conference tablet all-in-one machine

The conference tablet all-in-one machine has diverse functions and can achieve efficient management of meetings. It has a wide range of applications in company meetings, enterprise training, teaching and training, media presentations, and other fields.
Send Inquiry
Description
Argument
Products Description

Multi functional: The conference tablet integrates 8 device functions: projector, screen, electronic whiteboard, TV, computer, tablet, set-top box, and audio.

Dual system: Android+Windows dual system one click switch, strong compatibility, can install various software, meet various meeting and teaching needs.

4K Writing Whiteboard: Adopting two technologies of ± 1mm high-precision original handwriting writing and personalized pen style writing, with one click switching between single point/multi-point. Write, zoom, drag, erase with the back of the hand, copy, insert graphics, add pages, preview. The written content can be saved and shared with QR codes.

4K UI: All user interface UI resolutions are 4K ultra-high definition, providing a more textured and delicate image.

Permissions and Locks: Android USB Permissions: Supports locking USB ports. When inserting a USB drive, a password is required to open the drive, which can be set by oneself

Shared LAN port wired network: The J45 Ethernet cable only needs to be connected to the LAN port of the Android card to enable Android and OPS to share this wired network

Screen saver and energy-saving settings: Customize the screen saver interface wallpaper and energy-saving screen saver time. Make the screensaver more personalized for display.

Document annotation: Various file formats such as PPT, Word, Excel, PDF, etc. can be directly read. After annotation in any interface, save locally or share with QR code to take away.

Wireless screen mirroring: 5G fast screen mirroring for mobile phones and tablets, Android requires downloading screen mirroring software, and iOS requires direct screen mirroring through AIR PLAY; Laptop computer wireless screen sharing, capable of bidirectional operation, requires wireless screen sharing device; Support 9 devices to be simultaneously placed on the all-in-one machine for 9-split screen display.

VIP reception: Create a welcome ceremony display for each visitor at zero cost, sign it and save it locally or share it with a QR code to take away.

One click start: Three in one button (energy-saving, environmentally friendly, and improves service life)

Self checking function: Supports one click self checking of devices and one click system optimization.

Plug in Intel-80pin slot: A standard Intel-80pin slot that supports OPS computers with standard 80pin on the general market.

Five finger screen off, three finger follow: can achieve five finger screen off, five finger wake-up, distinguish ECO mode; Three finger floating bar follows, making operation more convenient.

Front three USB shared interface: The front three USB interfaces are both the front USB interfaces for OPS computers and Android devices.


Tags:

Technical parameter

Screen

 parameters

Screen size

65 inches

Display siz

1428*803(H*V)mm

Screen resolutio

3840*2160

Contrast ratio

1200:1

Display color

1.07B (8-bit+Hi-FRC)

Refresh rate

60Hz

Display luminance300cd/m²,500cd/m²
Viewing Angle

Horizontal/vertical: 178°/178°

Tempering glassPhysically tempered explosion-proof glass

Android

configuration

CPU

64 bit quad core processor

RAM

2GB\4GB\8G

ROM

32GB\64GB\128GB

System version

Android 11, Android 12, Android 13

WiFi

Wireless network:IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Dual Band

Screen casting hotshot:IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Dual Band

Bluetooth module: BT:v2.1+EDR/BT V3.0/BT V3.0+HS/BT V4.0

Receive distance:12 meters

machine

interface

Side interface

RS232,RJ45,AV IN,MIC IN,VGA IN,VGA Audio,HDMI,SD Card,USB 2.0,USB3.0,HDMI OUT,TOUCH USB,Spdif,Micro USB,Line OUT,COAX..

Front interface

UBS 3.0,HDMI,TOUCH USB,Type USB,Photosensitive head,Remote control head

The above interface parts are optional items, and the specific configuration should be based on the actual required style

button

start button

Multi in one power button, supporting two in one, three in one and other setting modes (to achieve energy-saving, OPS computer on/off, and all-in-one machine on/off functions)
Optional buttons

Switch, volume+, volume -, eye protection, screen recording, home page, settings, touch switch (single button optional)

PC

configuration

CPU

I3\I5\I7 (3rd, 4th, 6th, 7th, 8th generation....)

RAM

4GB\8GB\16GB\32G

SSD

64GB\128GB\256GB\512GB

Web suppor

RJ45 Network cable,WiFiBluetoot

Port

USBRJ45HDMI out,VGA out,Audio out

Serial port

RS232RS485TTL

System version

Windows 7,Windows 8,Windows 10,Windows 11
The above parameters are for reference only. The actual requirements prevail

Infrared touch


Touch embedding mode

Industrial built-in integrated, non-external (anti-interference, anti-scratch, anti-reflective)

Touch sensing technology

Infrared sensor recognition touch technology (10-point touch)

Touch mode

Fingers, stylus or other non-transparent objects not less than 5mm in diameter (multi-point 8mm)

Positioning accuracy

More than 90% of the touch area is ±2mm

Touch Click CountTheoretically infinite

Optional touch

:Capacitor Touch

Touch box type

Multi point nano capacitive touch screen

Touch resolution

3840*2160

Scanning speed

50P/S

Positioning accuracy

±2mm

Response speed

6ms

Effective sensing area

Based on the display area of the device

Working humidity

10~98%

Reminder

Some sizes of machines are not supporte

Other optional features

Anti-Glare

Anti glare and explosion-proof tempered glass

Camera+microphone

1300W/4800W camera+8 array microphones

Fuselage

technology

Appearance design

Novel and beautiful, reasonable layout, wiring standard. Four-class narrow edge structure, ergonomic design;

Fuselage material

Aluminum profile metal spray paint,cold-rolled steel plate,durable,compression resistance is not easy to deformation,cabinet and fixed backplane components tightly

Appearance technologyAluminum profile wire drawing oxidation treatment

Surface treatment

Aluminum paint sleeve: high-gloss paint/industrial paint, no need to worry about falling off or rust; Corrosion resistant, easy to clean overall.

Power source

Built-in safe and reliable power external lead and special socket (with anti-static grounding design)

Audio speake

Built-in full frequency audio speaker *2

ON-OF

No need to open the cabinet,directly external reset switch,convenient and quick

Machine size

Reference size:1483*883*92mm

Operating

environment

Input power supply

100~240V AC, 50/60Hz

Operation temperature

0~50℃

Working humidity

10%~90% RH

Storage temperature

-20~60℃

Storage Humidity

10%~90% RH

altitude

≤ 5000 meters

mountings

Wall mounted bracket

OBOO Standard metal wall bracket

Optional bracket

Mobile bracket, wall mounted hydraulic bracket, mobile lifting bracket

Other optional accessories

Touch flip pen, Touch USB cable, HDMI cable, Wireless screen sharing device

Bracket, screw, power cord, certificate, warranty card, WiFi antenna, remote control,Touch Pen
